DC fuel pumps
Flow-rate up to 50 l/min

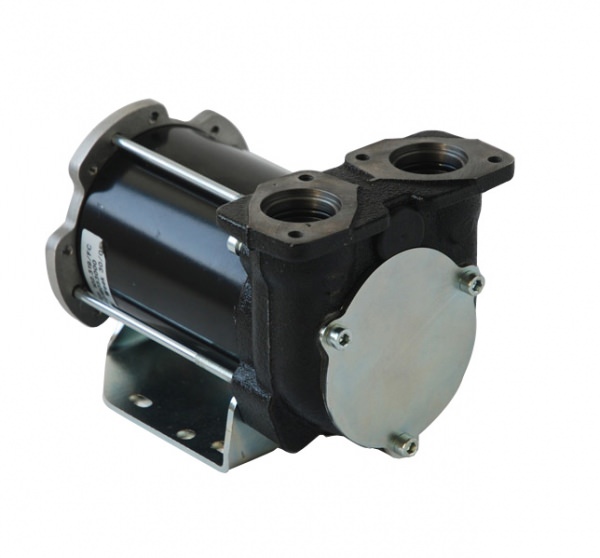

Displacement, self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve. Powerful, dependable and economical, they are available with 12 and 24-volt direct current motors. Thanks to their compact size, ease of installation, dependability and safety, these pumps are used as the primary system on earth-moving machinery and on mobile fuel pumps on vehicles or in construction yards.

Specifications:

• Cast iron pump body finished with anti-corrosion paint.
• Vane pump with sintered steel rotor and acetal resin vanes.
• By-pass valve incorporated in the pump body.
• Direct current brush motor with permanent magnet stator.
• Motor protection grade IP55.
• Used in intermittent service with 30-minute work cycles.
• Pump attachment support bracket.

Technical data:
