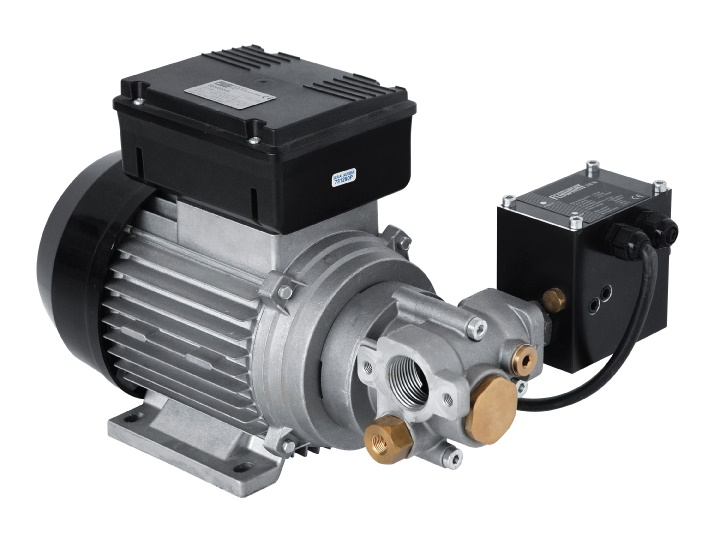

Pump Visco-Flowmat

Gear pumps with pressure switch
Flow-rate up to 14 l/min

The “Viscomat” is designed to satisfy requirements of constant flow deliveries with a self-priming pump featuring automatic switch-off on the completion of delivery.

1 - Adjustable by pass valve.
2 - Auto on/off: the immediate answer.
3 - Adjustable max delivery pressure.
4 - Safety over pressure valve set at 10 bar.
5 - No impulse flow.

Specifications:

  • Viscosity up to 2000 cSt
  • Constant flow rate
  • No need for compressed air
  • Flow rates 9 - 14 l/min
  • Pressures 12 - 25 bar
  • Continuous operation
  • Noise level below 70 dB
  • Automatic switch-on and switch-off
  • Uniform pulseless flow
  • Self-priming pump


Technical data:

Description Flow-rate Voltage Power Pressure Fuel
Visco-Flowmat 200/2 9 l/min 230 V 800 W 12 bar Oil
Visco-Flowmat 230/3 14 l/min 230 V 120 W 16 bar Oil
Visco-Flowmat 350/2 9 l/min 230 V 1250 W 25 bar Oil
