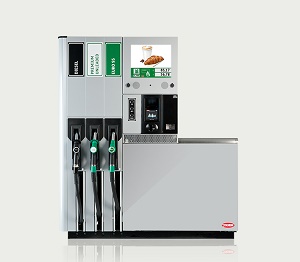

Tokheim’s Quantium 510 is the proud result of years of hard work and detailed information analysis by our engineering, service and installation teams around the world. The quality and reliability of the fuel dispenser design is based upon the real-life, real time data gathered from more than 40,000 service stations we directly support with our local organisations. The Q510 has been manufactured to be installed more safely, last longer, require less service and dispense more accurately. Not only does the Q510 benefit from the Tokheim Quality, it is packed with the innovative, robust, and reliable components that add genuine benefit to your business.

Quality looks for quality forecourts

The Q510 has been carefully designed, providing long-lasting refinement and innovation on your forecourt. At Tokheim we do things a little differently; we don’t build equipment to stock, but instead we produce every dispenser to our customers’ unique requirements, chosen from a wide range of possible configurations. We design it to your specific requirements and recognised high standards – allowing you to benefit from our selected ‘best of the best’ global components for the inside, but with your individual customised branding design for the outside.

Less service, less hassle

All of our fuel dispensers and their components go through rigorous testing at our renowned manufacturing facilities. This is to make sure that they continue to operate over their lifetime without the need for constant service call-outs. Tokheim’s Quantium dispensers have been independently verified to have up to 50% less service interventions than other industry installed and supplied pumps. Greater uptime means improved throughput and your customers can rely on your service station for a faster and more reliable refuelling experience.

TQM – The most reliable, minimal-drift meter

The Tokheim TQM meter provides our customers with a solution that delivers immediate benefits in their Quantium dispensers. It is has been quality engineered to dispense fuel with high accuracy and precision. The meter exhibits minimal drift performance over the lifetime of the fuel dispenser, helping our customers to reduce fuel loss to a minimum. Its robust design ensures it is suitable to work in the harshest conditions with a wide variety of fuel types. This is important over the life-time of your dispensers as it leads to a reduction in replacement and intervention on clogged filters, resulting in more uptime, increased throughput and higher, more accurate sales across the forecourt.

TQP – A proven, high quality pump

Tokheim’s TQP Suction Pump has proven its reliability and performance time and again in the toughest conditions and most hostile environments. More than 1 million units are installed today. Low electrical power consumption and high quality performance makes this unit a truly cost-effective pump.

TQC: The smarter, more advanced calculator

The TQC is Tokheim’s advanced calculator solution. It provides functionality that no previous calculators or media devices could deliver. It allows you to control your fuel more effectively, engage with your customers more easily and helps you to manage your maintenance more efficiently. It acknowledges the limitations of traditional calculators and, instead, it effortlessly connects the internal communications with the outside world. Built on Linux, utilising a powerful ARM processor, with Can-bus technology for communicating gives you peace of mind that you have the most advanced calculator in today’s market and that your dispensers are ‘future-proofed’ to meet the technology changes of tomorrow.

TQC-VGA – A 17” media solution

Tokheim’s TQC-VGA is an all-in-one Media and Calculator platform that provides a medium for effective communication with your target audience. Displays stimulate customers to increase average spend on impulse purchases as well as additional services such as car wash whilst providing clear and effective guidance on the traditional fuelling experience. With an easy-to-use schedule plan, you choose what presentations you’d like to run and when. Tokheim provides a standard LCD Display on all our 510 dispensers -upgrading to TQC-VGA is simple and delivers a strong return on investment.

Fraud Prevention

The Quantium 10 series platform has a variety of security and fraud preventive features. It is tamper-proof through a secure link between hydraulic controller and the main CPU, with encrypted internal communications adding enhanced security. Our software and hardware is designed to prevent manipulation of measurements with digital and physical tagging of all boards and peripherals. These designs ensure that you won’t suffer loss of fuel sales should there be a disconnection at the dispenser electronics or external manipulation of the pulser/meter.

Integrated touchscreen Payment

The Crypto VGA, Tokheim’s outdoor payment solution, is an all-in-one touchscreen and pin pad. It quickly guides the customer through the transaction process with a simple, clean and easy to use interface. The Crypto VGA increases your retailing options, makes your site more secure, helps reduce drive-offs and ultimately helps increase profits. It is one of the most secure payment devices in the retail industry and the first to achieve PCI UPT certification. You can choose between a dispenser integrated Crypto VGA or a stand-alone payment terminal.

Long-Lasting Livery

We have invested in a cutting-edge design facility with a specialist team that clads your dispensers precisely inline with your graphic requirements. Our panels are made up of treated cataphorised carbon steel cladding – providing long lasting life, in the harshest conditions. We also provide additional options such as aluminium and stainless steel.

Energy Consumption

Quantium 510 is the most energy efficient dispenser Tokheim has ever produced. The TQC dispenser uses components that require less power and we use energy management software to help reduce the amount of power required. The lower power consumption significantly reduces your energy bill over the petrol pump’s lifetime, and you can be sure that you are participating in enhancing and protecting the global environment.

Temperature Compensation

Tokheim’s Automatic Temperature Compensation (ATC) ensures you don’t lose out on fuel sales through the expansion or contraction of your product. The temperature coefficient of Fuel is 0.1%, so for every 1°C the fuel it is heated it expands by 0.1%. This fully approved technology allows you to dispense your fuel at 15°c. This ensures you will not be penalised by ‘hot deliveries’ or ‘cold dispensing’.

Vapour Recovery

Tokheim has been a leading supplier of Vapour Recovery solutions over the last decade and we are renowned specialists in this area. Tokheim includes VR functionality on the TQC platform ensuring that there is no need for additional VR electronics. This leads to less components, more space, less power consumption and fewer cables. TQC’s architecture means that it will be easier to adapt your systems for future environmental regulations.

Base Models

• Standard speed (40 l/min.)
• High speed (80 l/min.)
• Very high speed (130 l/min.)
• Satellite models
• Double-sided and single-sided models
• Combined standard speed-high speed
• Combined standard speed-very high speed
• AdBlue configurations
• Lifting slots solution for a safer installation
• Combined standard speed-high speed
• Combined standard speed-very high speed
• AdBlue configurations

Flow rates depend on model, underground site layout, site altitude and ambient temperature and selected options

Optional Features

• Electronically Controlled Vapour Recovery (ECVR)
• Tokheim patented Self-Calibrating Vapour Recovery System – ECVR-SCS (including both monitoring and Self-Calibrating System)
• Several vapour recovery ground connections
• Vapour Recovery
• Automatic temperature compensation
• Electronic calibration
• Main safety switch
• Programming switch
• Single-phase motor
• Preset functions via push buttons
• Unit price display per product
• Product indication lights
• OPT lamps
• Speaker (one way sound)
• IR remote control compatible
• Mechanical totalisers on meter
• Anti-magnetic electro-mechanical totalisers (single- and double-sided)
• Wide range of nozzles available
• 40/80 speed selection
• External filterpot for EPZ pump
• Several hydraulic inlet options
• Submerge
• Wide range of stainless steel flexible connections to ease installation
• Ground frame
• Sightglass
• Satellite connection single or double sided
• E85 compliant
• Breakaway couplings
• Low temperature kit
• Payment-integrated solutions for a wide range of markets
• Wafer stainless steel hydraulic top cover
• Custimised livery of complete dispenser
• Fire and tilt detection
• Media Head with 17” screen

Only core features and options are listed. For more detailed information on available options, please contact your local Tokheim representative.

Environmental conditions

• Ambient temperature: -25°C to +55°C
• Cold climate: -40°C to +55°C (optional)
• Temperature of fluid: -25°C to +25°C
• Viscosity of fluid: < 10-4 m2/s
• Relative humidity: 5% to 95%
• Altitude: from sea level to 2000 m
