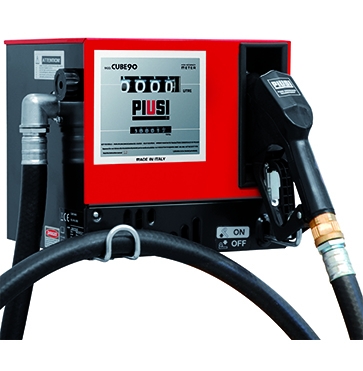

CUBE 56 - 70 - 90

Fuel dispensers

Diesel fuel dispenser for non commercial use. Sturdy structure designed for different applications: can be fixed to walls, tanks cisterns, drums, special pedestals. Self-priming vane pump fitted with bypass, installed on anti-vibration supports. Mechanical seal. Induction motor fitted with thermal motor overload protection.

Automatic nozzle with swivel connection. Integrated nozzle holder with stop/start pump lever. Intake mesh filter.

Nutating-disk displacement flow metre with mechanical readout system.

Performance:

• Flow-rate: up to 90 l/min.
• Continuous AC operation.
• Noise level: below 75 dB.
• Accuracy: ±1%.

Technical data:

Description Flow-rate Voltage Power Filter Hose
CUBE 56 56 l/min 230 V 350 W - 4 m., Ø3/4"​
CUBE 70/33 70 l/min 230 V 500 W - 4 m., Ø1"
CUBE 56 DC 12V 56 l/min 12 V 300 W - 4 m., Ø3/4"
CUBE 70 DC 24V 70 l/min 24 V 420 W - 4 m., ​Ø1"
Cube 56/33 + Filter 56 l/min 230 V 350 W Yra 6 m., Ø3/4"
Cube 70/33 + Filter 70 l/min 230 V 500 W Yra 6 m., Ø1"
Cube 90/44 90 l/min 230 V 700 W - 4 m., Ø3/4"
