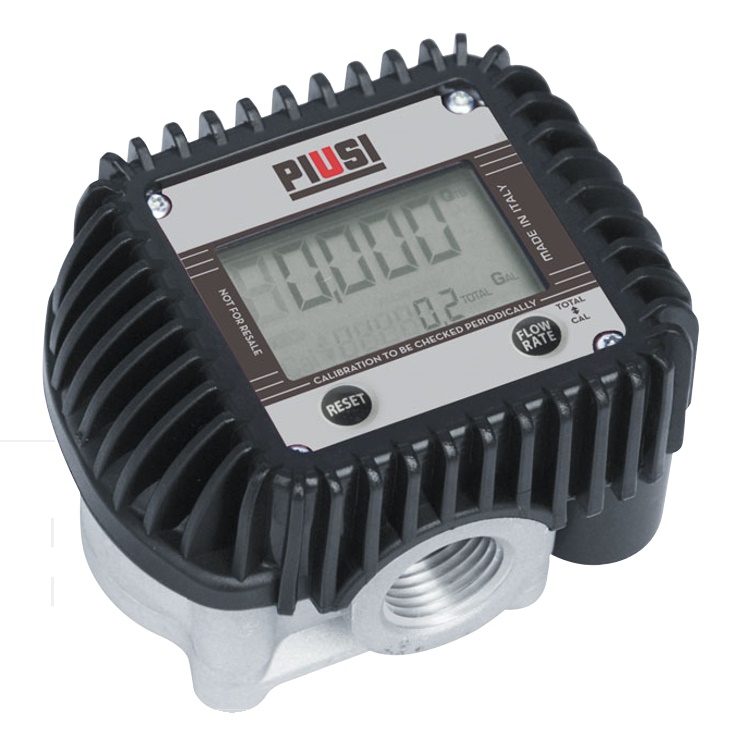

Meter K400
Oval gear flow meter
Oval gear electronic flow meters and oval gear pulser flow meters for controlling the dispensing of lubricating oils and diesel. Body with aluminium measuring chamber. The operating principle of the oval gears allows for a high degree of accuracy when measuring and reduced loss of pressure.
The new K400 can be used either in-line on hoses, or on the nozzle, for instantaneous measuring of the fluid dispensed.
Specifications:
- Standard AAA-size batteries
- Bursting pressure: 200 bar
- Easy inspection and maintenance
- Working pressure 70 bar
- Aluminium body, Rubber protector
- Oval gear in acetal resin
- 5 figure partial display(Resettable), 7 figure total
- Loss of pressure <0.5 bar
- Flow rate up to 30 l/min
- Accuracy +/- 0,5 %
- Repeatability: 0.2 %
- Viscosity 2 - 2000 cSt
Electronic meters technical data:
Description | Flow-rate | Pressure | Connection | Fuel |
K400 | 1 - 30 l/min | 70 bar | 1/2" | Diesel, oil |
Pulser meters technical data::
Description | Flow-rate | Pressure | Pulser | Connection | Fuel |
K400 Pulser | 1 - 30 l/min | 70 bar | 100 p/l | 1/2" | Diesel, oil |
