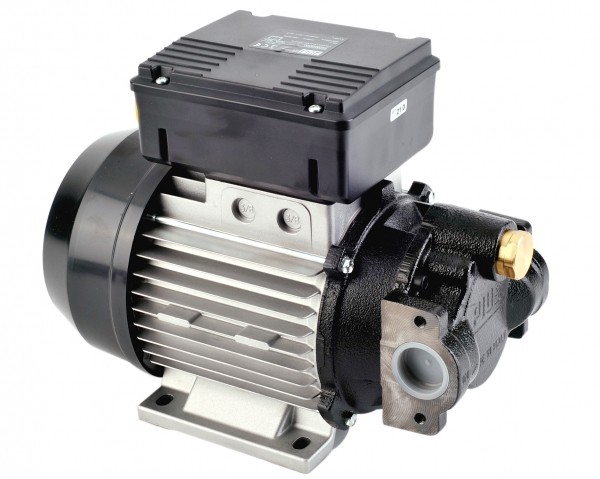

Pump Viscomat Vane

Vane pump for oil
Flow-rate up to 50 l/min

Electric vane pump for pumping fluids of a viscosity up to 500 cSt.

Specifications:
  • Continuous operations, with elevated suction, up to 6 bar pressures.
  • Noise levels below 70 dB.
  • Asynchronous, closed, self-ventilating AC motor available in different voltages and frequencies.
  • Optional closed-delivery operations thanks to inbuilt adjustable by-pass in pump body.
  • Sintered steel rotors with resin vanes.
  • Seal on motor shaft accessible from pump side.



Technical data:

Description Flow-rate Voltage Power Pressure Fuel
Viscomat 70 M 25 l/min 230 V 1200 W 6 bar Oil
Viscomat 70 T 25 l/min 400 V 650 W 6 bar Oil
Viscomat 90 M 50 l/min 230 V 1350 W 5 bar Oil
Viscomat 90 T 50 l/min 400 V 2000 W 5 bar Oil
