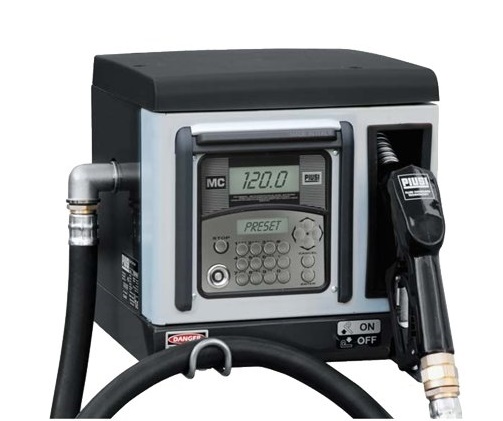

CUBE 70 MC

Diesel fuel dispenser for non commercial use

Sturdy structure designed for different applications: can be fixed to walls, tanks cisterns, drums, special pedestals. Self-priming vane pump fitted with bypass, installed on anti-vibration supports. Mechanical seal. Induction motor fitted with thermal motor overload protection.

Automatic nozzle with swivel connection. Integrated nozzle holder with stop/start pump lever. Intake mesh filter.

Fitted with oval gear meters and an electronic unit for multiuser control and pre-selected dispensing.
Local memory capable of storing data for last 255 operations. Interfaces with PC for sending and organising data. Possibility of entering vehicle registration number, kilometres, date and time of dispensing operation.

Magnetic keys (Kit keys) available for user identification.

Performance:

• Flow-rate: up to 70 l/min.
• Accuracy: ± 0,5 %
• Local memory for last 255 operations.
• Possibility of entering vehicle registration number, kilometres, date and time of dispensing operation.
• Magnetic keys (Kit keys) available for user identification.

Technical data:

Description Flow-rate Voltage Power Hose Users
CUBE 70 MC 70 l/min 230 V 900 W 4 m., Ø1"​ 50
CUBE 70 MC DC 12V 56 l/min 12 V 300 W 4 m., Ø1" 50
CUBE 70 MC DC 24V 70 l/min 24 V 420 W 4 m., Ø1" 50
CUBE 70 MC 120 UT 70 l/min 230 V 550 W 4 m., ​Ø1" 120
CUBE 70 MC 12V 120 UT 56 l/min 12 V 300 W 4 m., Ø1" 120
