Filling connections

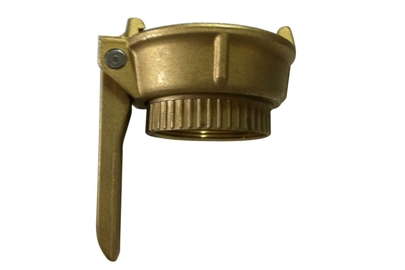

MK connection

 Thread: inner BSP thread.
Max working pressure: 25 bar.
Material: brass, stainless steel AISI316.
Sealing: brass – NBR rubber seal, stainless steel – hypolon seal.
Thread sealing: brass - polyurethane (PU) seal, stainless steel – PTFE seal.
Usage: petroleum products, chemicals, liquid fertilizers and other liquids.
Standard: DIN 28450

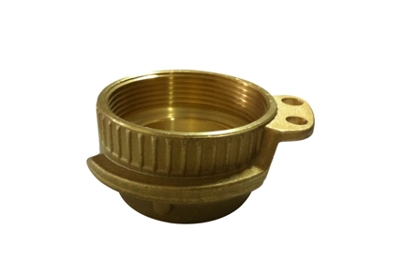

VK connection

 Thread: inner BSP thread.
Max working pressure: 25 bar.
Material: brass, stainless steel AISI316.
Thread sealing: polyurethane (PU) seal.
Usage: petroleum products, chemicals, liquid fertilizers and other liquids.
Standard: DIN 28450

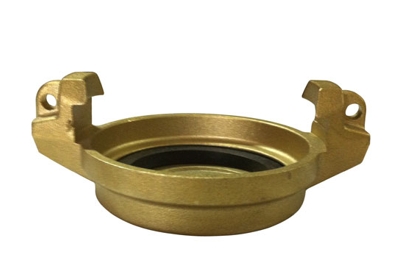

MB cover

 Material: brass, stainless steel AISI316, aluminium.
Sealing: brass and aluminium – NBR rubber seal, stainless steel – hypolon seal.
Standard: DIN 28450

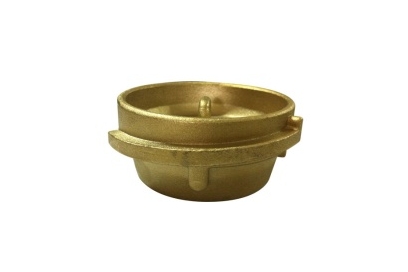

VB plug

 Material: brass, stainless steel AISI316, aluminium, polypropylene.
Standard: DIN 28450
