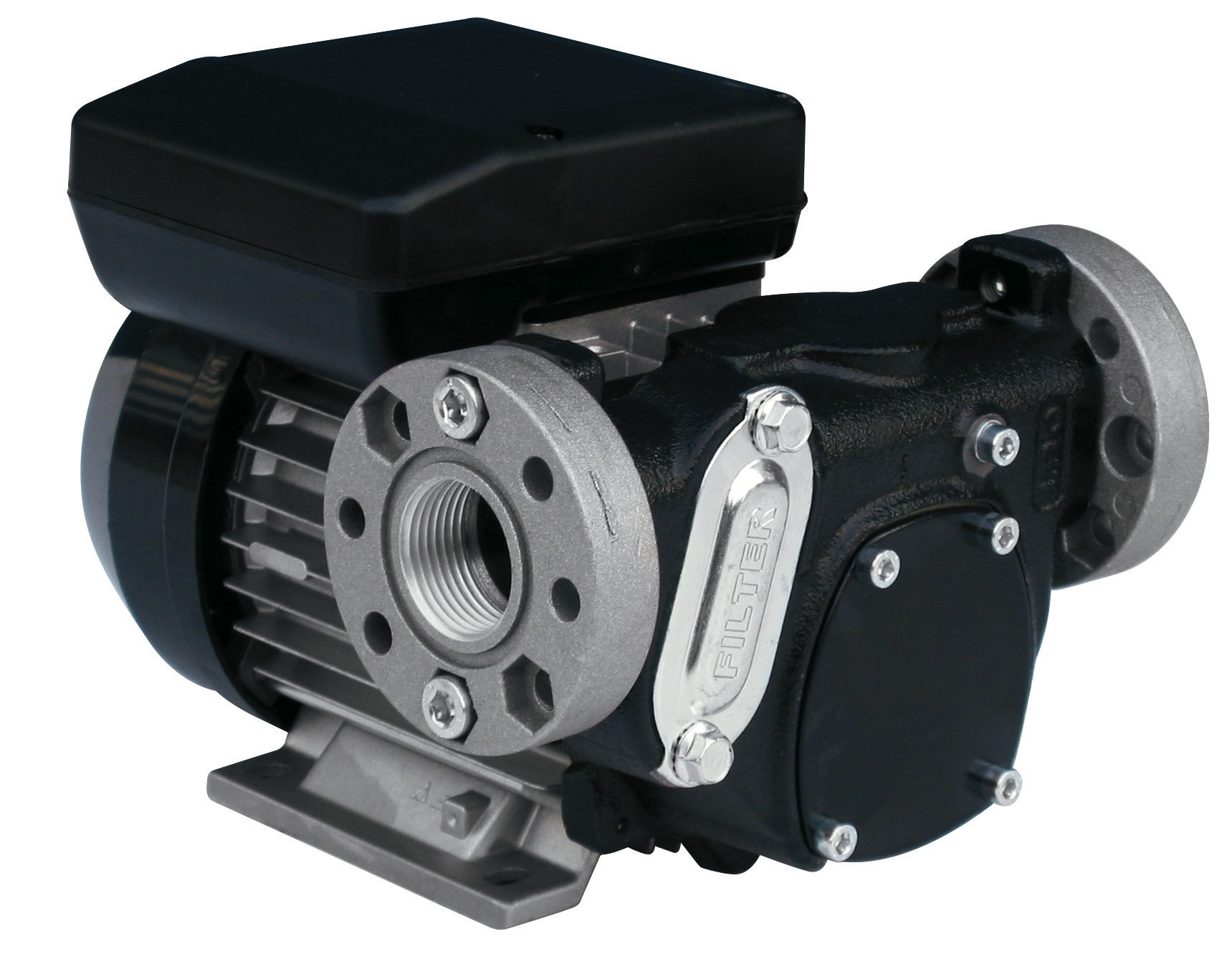

Pump Panther - AC

AC fuel pumps
Flow-rate up to 90 l/min

Diesel transfer electric pump. Displacement, self-priming rotary electric vane pumps.
Fitted with by-pass valve and elevated reliability seal even at low working temperatures. Compact and easy to install they are ideal for dispensers, fixed fuel transferring systems and other industrial applications.
Sturdy cast iron structure, vane pump with sintered steel rotor and acetal resin vanes, induction motor with aluminium casing. Suitable for continuous use with thermal motor overload protection.





Technical data:

Description Flow-rate Voltage Power Fuel
Panther 56 230 56 l/min 230 V 350 W Diesel
Panther 56 400 56 l/min 400 V 500 W Diesel
Panther 72 230 72 l/min 230 V 500 W Diesel
Panther 72 400 72 l/min 400 V 500 W Diesel
Panther 90 90 l/min 230 V 700 W Diesel
