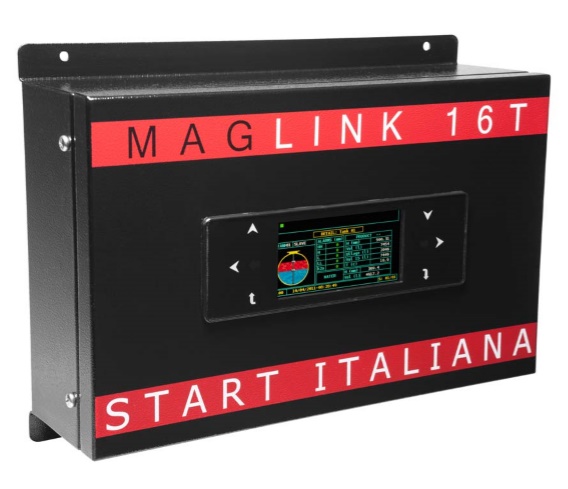

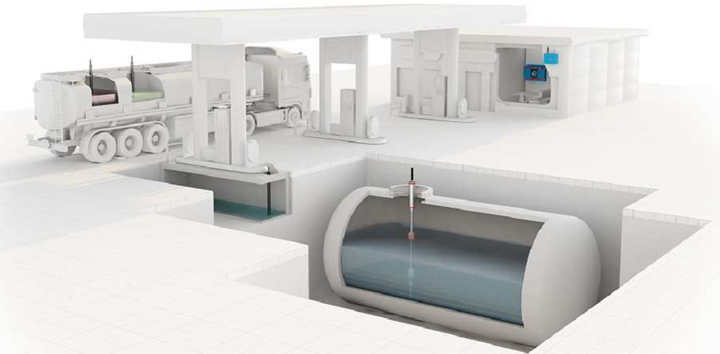

Controller can manage up to 16 tanks. It provides data received from level gauges. Controller can be used with the most control systems used in gas stations.

• Graphical colour TFT 4,3” display
• No. 6 soft function keys for menu management
• No. 2 RS232 - No. 1 RS485 - No. 1 USB ports
• 16 SPDT programmable relais 250 Vac 1A
• Up to 6 digital/analog inputs
• Active or passive integrated barriers
• Metal housing 355x260x110 mm IP40 protection degree

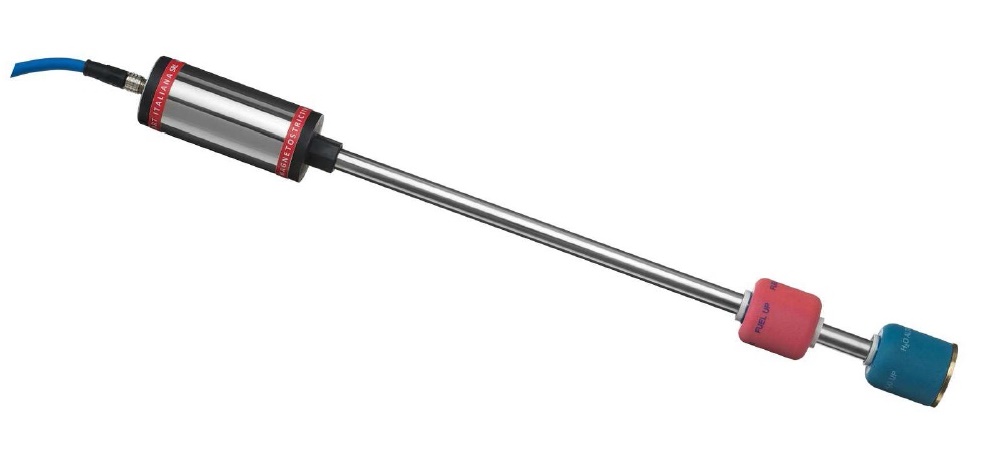

Magnetostrictive I.S. probes XMT SI transmits accurate information about product level, temperature and water level.

• Stainless Steel Enclosure Ø 50 mm IP68 (submersible up to 1,2 m per 24 hours).
• In 2” riser installation.
• Measuring range: from 200 mm. up to 12 500 mm.
• 7/8" circular connector with standard cable length 2 m. Ø 9 mm, hydrocarbon resistant in according ENI specification.
• Power supply: 12 VDC.
• RS485 serial port.
• I.S. circuits to wire to an intrinsically safe barrier active (BRA-SI) or passive (BRA-SIP).
• Standard measuring accuracy: +/- 0,5 mm.
• Standard resolution: +/- 0,01 mm.
• Temperature accuracy range -20 +70 °C: +/- 0,2 °C.
• Temperature resolution: ± 0,0625 °C.

Calculation of data relating to:

• Product level in 0,01 mm
• Interface level in 0,01 of mm. (water presence detection)
• Product mean temperature up to max. 5 integrated digital sensors.

Certificates:

• CEC 09 ATEX 131 rev2 : II 1G Ex ia IIB T4 II 1D Ex tD A20 T135°C.
• CEC 09 ATEX 131 rev3 : II 1G Ex ia IIB T4 Ga II 1D Ex t IIIC T135°C Da IP66/68.
