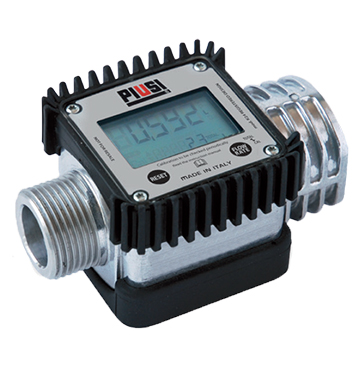

Meter K24

Digital flow meters for low-viscosity fluids

Easy to install, in line or at the end of a delivery pipe, equipped with a screen that can be adjusted to various positions for easy reading. The ideal instrument for controlling fluid dispensing. Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions.

Specifications:
  • Aluminum (K24) or reinforced polyamide (plastic version) body.
  • Polypropylene turbine.
  • Impulse-type signals:
  • single channel, reed switch.
  • Electronic card with LCD display: 5-digit partial from 0.1 to 99999, 6-digit total from 1 to 999999
  • Resettable total available.
  • Flow rate indication.
  • Repeatability 0.2 %. Loss of pressure < 0.03 bar at 120 l/min.
  • Can be calibrated. Powered by two AAA batteries.

Electronic meters technical data:

Description Flow-rate Pressure Connection Fuel
K24 7 - 120 l/min 20 bar 1" Diesel
K24 ATEX 7 - 120 l/min 20 bar 1" Diesel, Gasoline

Pulser meters technical data:

Description Flow-rate Pressure Pulser Connection Fuel
K24 ATEX 7 - 120 l/min 20 bar 92 p/l 1" Diesel, Gasoline
