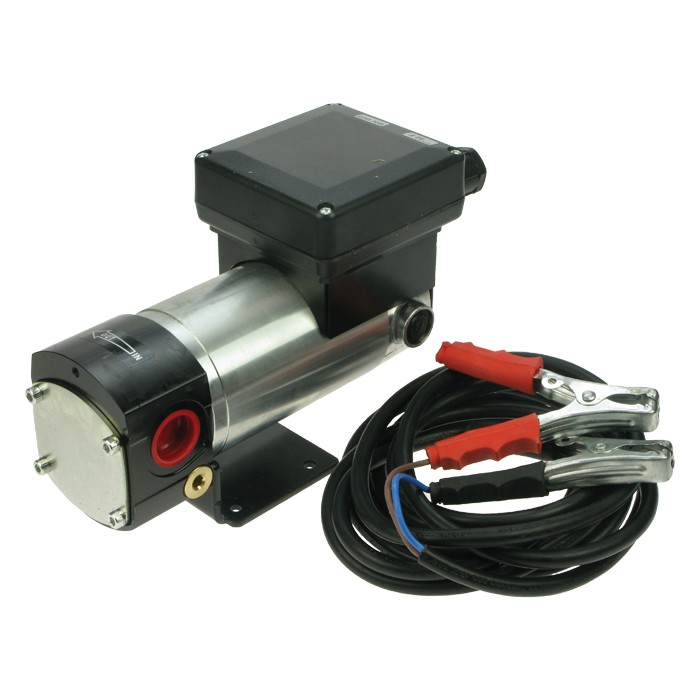

Pump Viscomat DC

DC oil pumps
Flow-rate up to 10 l/min

A new and complete range of pumps for transferring and delivering oil, operated by direct current motors. These products are especially designed for transferring oil from drums in situations and locations where electricity or pneumatic connections are not available.

Specifications:

  • Flow rate 4 - 10 l/min.
  • Operating pressure: 5 bar
  • Viscosity up to 2000 cSt (Viscomat DC 60/2 max viscosity of oil 600 cSt)
  • Duty cycle: 30 min
  • Noise level below 65 dB



Technical data:

Description Flow-rate Voltage Power Pressure Duty cycle Fuel
Viscomat DC 60/1 12V 4 l/min 12 V 150 W 5 bar 30 min. Oil
Viscomat DC 60/2 12V 10 l/min 12 V 300 W 4 bar 30 min. Oil
Viscomat DC 120/1 12V 5 l/min 12 V 200 W 10 bar 30 min. Oil
Viscomat DC 60/1 24V 4 l/min 24 V 150 W 5 bar 30 min. Oil
Viscomat DC 60/2 24V 10 l/min 24 V 300 W 4 bar 30 min. Oil
Viscomat DC 120/1 12V 5 l/min 12 V 200 W 10 bar 30 min. Oil
Viscomat DC 120/1 24V 5 l/min 24 V 200 W 10 bar 30 min. Oil
